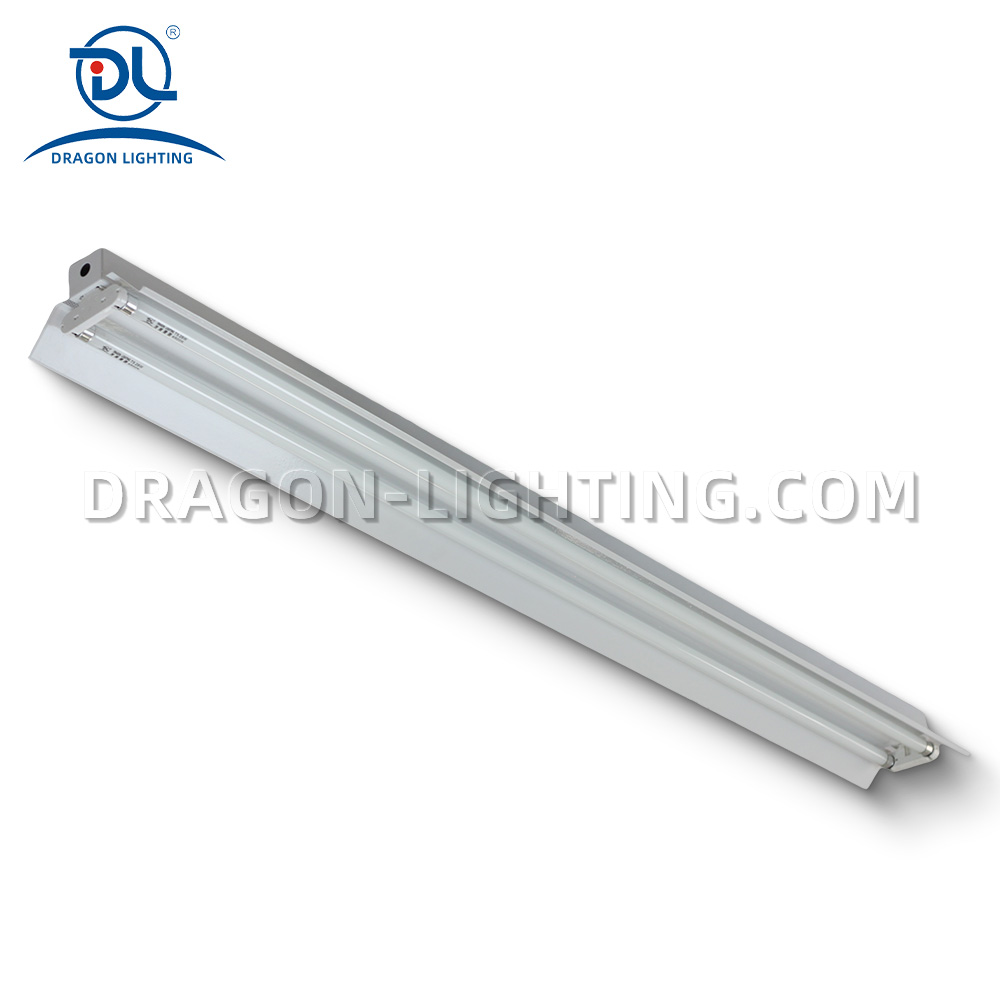

Battern series-DLGZ/DLGZF series
Detailed Product Introduction
Body: 0.5mm steel housing, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application
With white powder coating.
Diffuser:The diffuser is made of high quality sheet steel with white powder coating.
It can uses LED single-ended or double-ended wiring tube.
Installation: Ceiling mounting, suspended mounting.
Application: office, supermarket, school, warehouse, railway station, subway station and other public place.
| Model | Power | LEDS | Lumens | lumen/w | CRI | CCT | Lifetime | demension |
| DLGZ-108 | 8 | tube | 800 | 100 | ＞80 | 4000k/6500k | 30000 | 650x50x40 |
| DLGZ-208 | 16 | tube | 1600 | 100 | ＞80 | 4000k/6500k | 30000 | 650x80x40 |
| DLGZ-116 | 16 | tube | 1600 | 100 | ＞80 | 4000k/6500k | 30000 | 1250x50x40 |
| DLGZ-216 | 32 | tube | 3200 | 100 | ＞80 | 4000k/6500k | 30000 | 1250x80x40 |
| DLGZ-118 | 18 | tube | 1800 | 100 | ＞80 | 4000k/6500k | 30000 | 1250x50x40 |
| DLGZ-218 | 36 | tube | 3600 | 100 | ＞80 | 4000k/6500k | 30000 | 1250x80x40 |
| DLGZ-108F | 8 | tube | 800 | 100 | ＞80 | 4000k/6500k | 30000 | 650x50x40 |
| DLGZ-208F | 16 | tube | 1600 | 100 | ＞80 | 4000k/6500k | 30000 | 650x80x40 |
| DLGZ-116F | 16 | tube | 1600 | 100 | ＞80 | 4000k/6500k | 30000 | 1250x50x40 |
| DLGZ-216F | 32 | tube | 3200 | 100 | ＞80 | 4000k/6500k | 30000 | 1250x80x40 |
| DLGZ-118F | 18 | tube | 1800 | 100 | ＞80 | 4000k/6500k | 30000 | 1250x50x40 |
| DLGZ-218F | 36 | tube | 3600 | 100 | ＞80 | 4000k/6500k | 30000 | 1250x80x40 |
