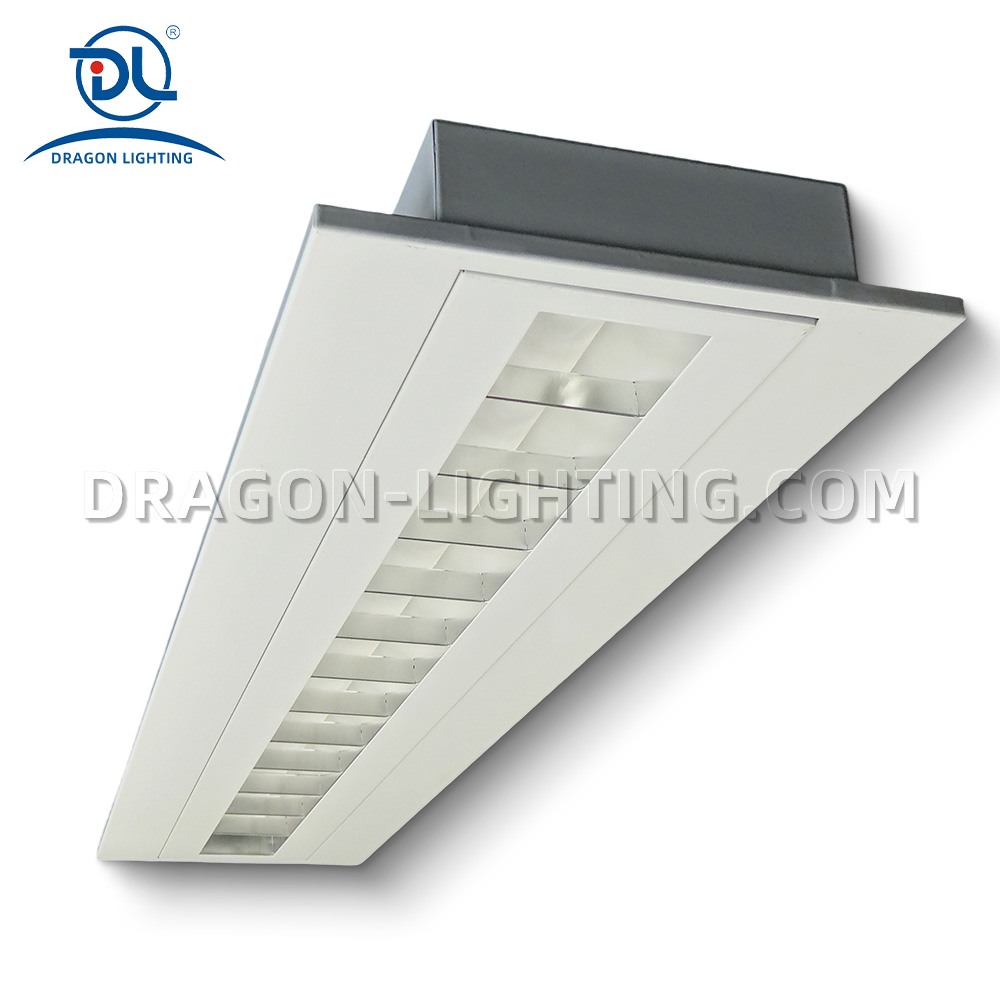

Recessed LED Grill Light 1
Body: 0.5mm steel housing, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application
With white powder coating.
Diffuser:The diffuser is made of imported specular from Alanod Miro5/Miro4/320G/1100G/Chinese Aluminium material.
Diffuser: The diffuser design with special design led diffuser of PC together ,lamin with double linear designs with 85% optical
Efficiency provides;
The fixture is diffuser & perforated sheet & frame connecting design, Deal effectively with the LED glare, UGR<16 and has strong
Pervious to light performance, easy to open.
It is suit for LED T5 tube and led module in SMD2835 and LED driver in PHILIPS, OSRAM, TRIDONIC, LIFUD and etc,
Installation: Recessed mounting,
Application: office, mall, airport, bank, hospital and other public place.
MODEL | WATT | LEDS | LUMINOUS | LUMENS/WATT | CA | CCT | LIFETIME | DIMENSION |
DLR1-4130 | 30 | 2835 | 2550 | 85 | >80 | 4000k/6000k | 50000 | 1195x295x62 |
DLR1-4140 | 40 | 2835 | 3400 | 85 | >80 | 4000k/6000k | 50000 | 1195x295x62 |
DLR1-2120 | 20 | 2835 | 1700 | 85 | >80 | 4000k/6000k | 50000 | 595x295x62 |
DLR1-2230 | 30 | 2835 | 2550 | 85 | >80 | 4000k/6000k | 50000 | 595x595x62 |
DLR1-2240 | 40 | 2835 | 3400 | 85 | >80 | 4000k/6000k | 50000 | 595x595*62 |
DLR1-2110 | 10 | T8 | 850 | 85 | >80 | 4000k/6000k | 10000 | 595x295x62 |
DLR1-2220 | 20 | T8 | 1700 | 85 | >80 | 4000k/6000k | 10000 | 595x595x62 |
DLR1-4120 | 20 | T8 | 1700 | 85 | >80 | 4000k/6000k | 10000 | 1195x295x62 |
