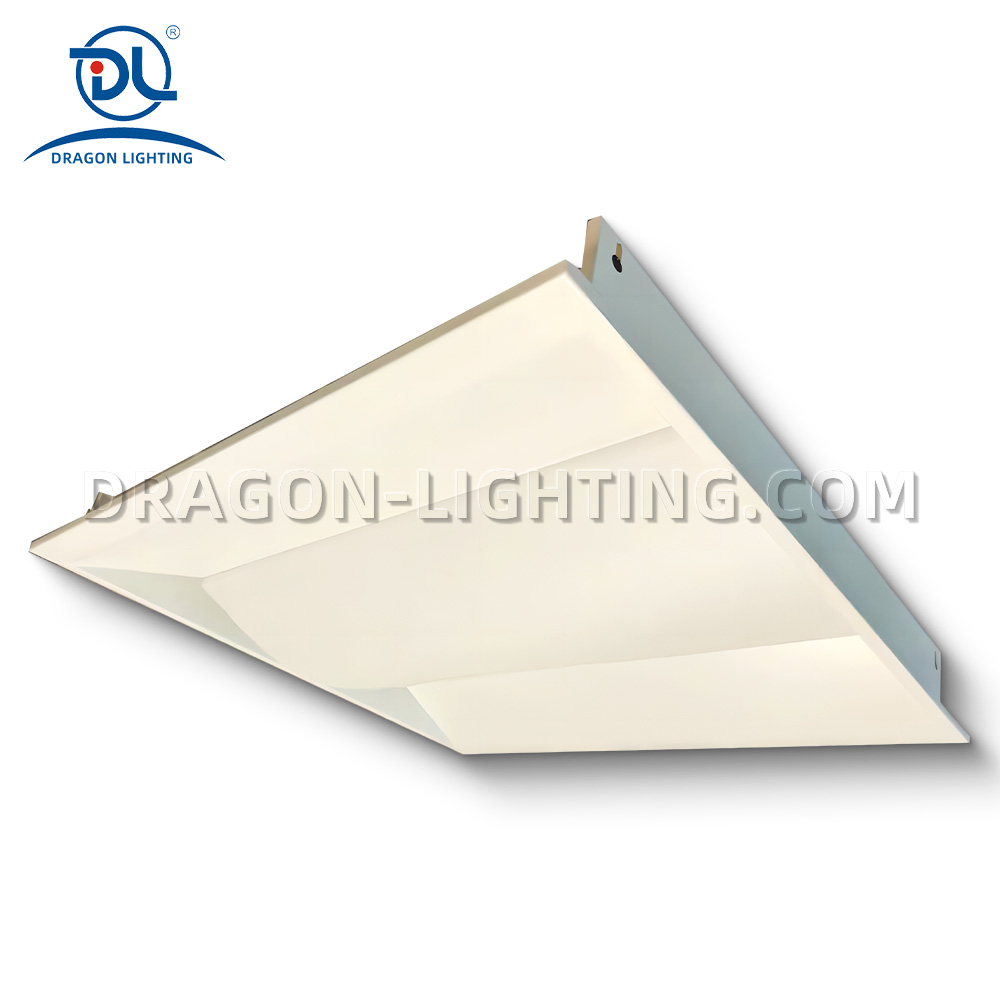

DLTPW Series
Light is made of high quality steel ,rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application
With white powder coating
Polycarbonate, Acrylic Led Diffuser Specially for LED, Designed of PC material, adopts the secondary reflection principle and the lamp
Light is reflected by the Radiation plate. light without glare, more soft, effectively prevent light sense of visual fatigue.
It use led module in SMD 2835. It can be CCT changable.
Philips, Tridonic in AC220-240, and Meanwell, Arcata ,X-power in AC120-277 or AC120-347 standard /Dimmable/Dali driver for LED line
Installation: Recessed mounting.
Applications: Office.Conference & Meeting rooms,Schools / Colleges & Universities,bank, library and airport,
Model | Power | LEDS | Lumens | lumen/w | CRI | CCT | Lifetime | dimension |
DLTPW-2220 | 20 | 2835 | 2400 | 120 | >80 | 3000k/4000k/6000k | 50000 | 595*595*70 |
DLTPW-2230 | 30 | 2835 | 3600 | 120 | >80 | 3000k/4000k/6000k | 50000 | 595*595*70 |
DLTPW-2240 | 40 | 2835 | 4800 | 120 | >80 | 3000k/4000k/6000k | 50000 | 595*595*70 |
DLTPW-4250 | 50 | 2835 | 6000 | 120 | >80 | 3000k/4000k/6000k | 50000 | 1195*595*70 |
DLTPW-4260 | 60 | 2835 | 7200 | 120 | >80 | 3000k/4000k/6000k | 50000 | 1195*595*70 |
