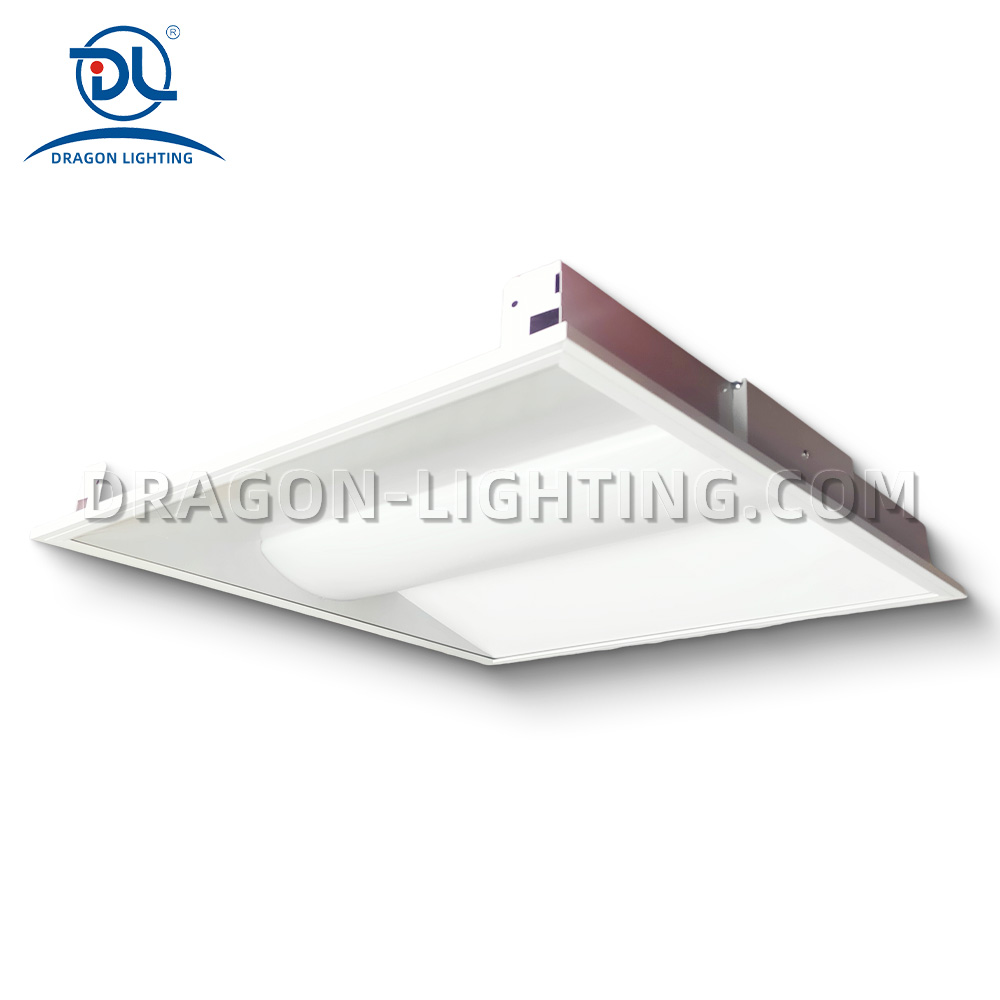

DLTP-AF Series
Detailed Product Introduction
Light is made of high quality steel and aluminium frame , rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white powder coating
Polycarbonate, Acrylic Led Diffuser Specially for LED, Designed of PC material, adopts the secondary reflection principle and the lamp light is reflected by the radiation plate.
Light without glare, more soft, effectively prevent light sense of visual fatigue.
It use LED module and famous logo driver, it can be CCT or Dimmable,
Installation: Recessed mounting.
Applications: Office.Conference & Meeting rooms,Schools / Colleges & Universities,bank, library and airport,
Model | Power | LEDS | Lumens | lumen/w | CRI | CCT | Lifetime | dimension |
DLTP-20AF | 20 | 2835 | 2400 | 120 | >80 | 3000k/4000k/6000k | 50000 | 595*595*70 |
DLTP-30AF | 30 | 2835 | 3600 | 120 | >80 | 3000k/4000k/6000k | 50000 | 595*595*70 |
DLTP-40AF | 40 | 2835 | 4800 | 120 | >80 | 3000k/4000k/6000k | 50000 | 595*595*70 |
DLTP-50AF | 50 | 2835 | 6000 | 120 | >80 | 3000k/4000k/6000k | 50000 | 1195*595*70 |
DLTP-60AF | 60 | 2835 | 7200 | 120 | >80 | 3000k/4000k/6000k | 50000 | 1195*595*70 |
